产品搜寻
| 勾选 | 型号 | 产品类型 | 显示内容 | 产品图 |
外形尺寸 (mm) |
视域窗口尺寸 (mm) |
显示尺寸 mm/英寸 |
点间距 mm |
视角 | 背光类型或亮度 | 连接方式PIN数 | 接口方式 | 特殊说明 | 工作温度 | 供电电压 | IC芯片型号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.6寸 240X160图形点阵COG液晶屏| STN+黄绿色LCD | SPI 接口 | Arduino HTG240160L-11Y-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||
| 2.6寸 240X160图形点阵COG液晶屏| STN+灰 灰底蓝字液晶LCD | SPI 接口 | Arduino HTG240160L-11W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||
| 2.6寸 240X160图形COG液晶屏 | DFSTN- 黑底白字显示屏 | SPI 接口 | Arduino HTG240160L-41W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||
| 2.6寸240X160图形COG液晶屏/带白色侧背光黑色字体的 FSTN+ 显示屏/SPI/Arduino HTG240160L-31W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||
| 2.6寸 240X160图形COG液晶屏/带黄绿色侧背光的 STN+黄绿显示屏/SPI 接口/Arduino HTG240160L-01Y-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||

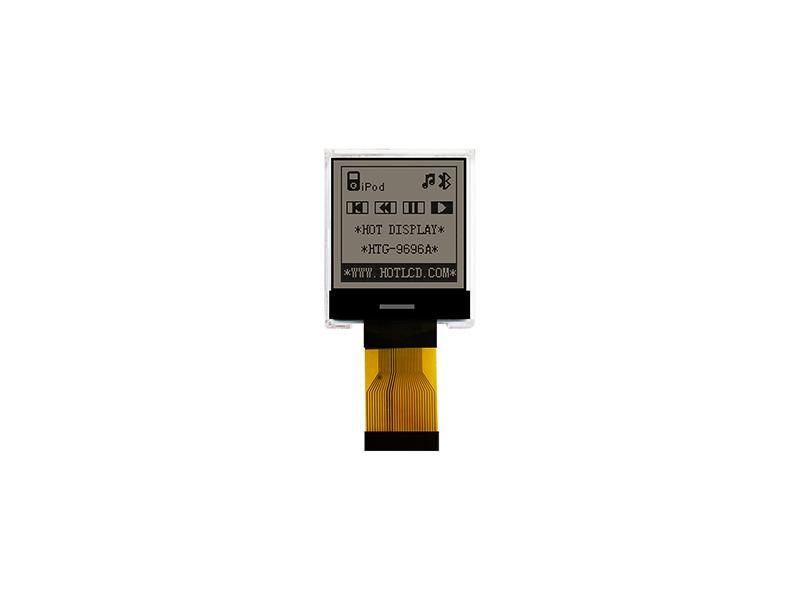

| 96*96 COG点阵液晶屏/HTG9696A | COG | 96x96 |
|
35.9x29.9x2.9 | 25.0x25.0 | 22.055x22.055 | 0.23x0.23 | 6H | 白光 | FPC-28PIN | MCU | -20-70℃ | 3.3v | SSD1848 | ||
| 128x128 COG点阵液晶屏/HTG128128A | COG | 128x128 |
|
55.0x49.0x2.8 | 46.0x44.5 | 40.935x38.375 | 0.295x0.275 | 6H | 白光 | FPC-12PIN | SPI | 抗静电ESD 8KV | -20~70℃ | 3.0v | UC1617S | |
| 128x128COG点阵液晶模组/手持，医疗设备显示屏/HTG128128Z | COG | 128x128 |
|
55.2x46.5x1.7 | 46.04x39.64 | 42.21x35.81 | 0.33x0.28 | 6H | 蓝光 | FPC-31PIN | MCU | 抗静电ESD 8KV | -20~70℃ | 3.3v | SSD1848Z | |
| 160x160 COG点阵液晶屏/HTG160160F | COG | 160x160 |
|
64.0x70.0x2.0 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 6H | 白光 | FPC-24PIN | MCU | -20~70℃ | 3.3v | UC1698 | ||
| 240x120 COG点阵液晶屏/HTG240120A | COG | 240x120 |
|
84.0x50.0x6.0 | 72.0x37.0 | 67.17x33.57 | 0.28x0.28 | 6H | 背光颜色可选 | FPC-16PIN | MCU | 抗静电ESD 8KV | -20~70℃ | 3.3v | UC1608 |
